IDEA本地搭建Pulsar调试环境

   约 1628 字   预计阅读 4 分钟

部署zookeeper

本地debug部署个单机版的就够了，参考此教程。注意在zoo.cfg文件中配置下admin.serverPort，默认是8080端口，会和Pulsar Broker的默认HTTP端口冲突，这里改为8888端口，完整配置如下：

# The number of milliseconds of each tick
tickTime=2000
# The number of ticks that the initial
# synchronization phase can take
initLimit=10
# The number of ticks that can pass between
# sending a request and getting an acknowledgement
syncLimit=5
# the directory where the snapshot is stored.
# do not use /tmp for storage, /tmp here is just
# example sakes.
dataDir=/tmp/zookeeper
# the port at which the clients will connect
clientPort=2181
# the maximum number of client connections.
# increase this if you need to handle more clients
#maxClientCnxns=60
#
# Be sure to read the maintenance section of the
# administrator guide before turning on autopurge.
#
# http://zookeeper.apache.org/doc/current/zookeeperAdmin.html#sc_maintenance
#
# The number of snapshots to retain in dataDir
#autopurge.snapRetainCount=3
# Purge task interval in hours
# Set to "0" to disable auto purge feature
#autopurge.purgeInterval=1

## Metrics Providers
#
# https://prometheus.io Metrics Exporter
#metricsProvider.className=org.apache.zookeeper.metrics.prometheus.PrometheusMetricsProvider
#metricsProvider.httpPort=7000
#metricsProvider.exportJvmInfo=true
admin.serverPort=8888

启动broker

在conf/broker.conf配置文件中，将metadataStoreUrl改为上一步中启动的zk的地址localhost:2181，如下：

# The metadata store URL
# Examples:
# * zk:my-zk-1:2181,my-zk-2:2181,my-zk-3:2181
# * my-zk-1:2181,my-zk-2:2181,my-zk-3:2181 (will default to ZooKeeper when the schema is not specified)
# * zk:my-zk-1:2181,my-zk-2:2181,my-zk-3:2181/my-chroot-path (to add a ZK chroot path)
metadataStoreUrl=zk:localhost:2181

创建Pulsar Cluster

找到PulsarAdminTool类，运行配置如下：

https://raw.githubusercontent.com/boatrainlsz/my-image-hosting/main/image-20220529201553854.png

conf/client.conf --admin-url http://localhost:8080 clusters create cluster-1

创建tenant

找到PulsarAdminTool类，创建名为public的租户，运行配置如下：

https://raw.githubusercontent.com/boatrainlsz/my-image-hosting/main/image-20220529201532768.png

conf/client.conf --admin-url http://localhost:8080 tenants create public

创建namespace

找到PulsarAdminTool类，在public租户下创建名为default的namespace，运行配置如下：

https://raw.githubusercontent.com/boatrainlsz/my-image-hosting/main/image-20220529201456304.png

conf/client.conf --admin-url http://localhost:8080 namespaces create public/default

消费者消费消息

找到PulsarClientTool类，接收非持久化消息，运行配置如下：

https://raw.githubusercontent.com/boatrainlsz/my-image-hosting/main/image-20220529201435329.png

conf/client.conf consume non-persistent://public/default/example-np-topic --subscription-name np-sub

生产者发送消息

找到PulsarClientTool类，发送一个非持久化消息，运行配置如下：

https://raw.githubusercontent.com/boatrainlsz/my-image-hosting/main/image-20220529201356872.png

conf/client.conf produce non-persistent://public/default/example-np-topic --num-produce 1 --messages "This message will be stored only in memory"

此时会在consumer的控制台看到日志打印，说明成功收到了消息：

https://raw.githubusercontent.com/boatrainlsz/my-image-hosting/main/image-20220529201305419.png

生产消费持久化消息

以上步骤介绍的是非持久化消息的生产和消费，持久化消息需要BookKeeper。不论是从源码编译，还是直接安装，BookKeeper目前均不支持Windows，具体见此issue，可以在WSL中编译。这里不涉及BookKeeper源码的debug，就直接按照官方教程安装。

下载bk压缩包

从https://bookkeeper.apache.org/releases下载压缩包，解压。

单机部署bk

在本地单机部署时，需要运行localbookie命令，详见https://bookkeeper.apache.org/docs/getting-started/run-locally。这里会出现两个问题：

  1. 无法启动JVM，报错日志如下：

    Unrecognized VM option 'PrintGCDateStamps'
Error: Could not create the Java Virtual Machine.
Error: A fatal exception has occurred. Program will exit.

    这个问题，在这里有提及。我们直接在启动脚本bookkeeper中加一下-XX:+IgnoreUnrecognizedVMOptions即可：

    ...
elif [ ${COMMAND} == "localbookie" ]; then
  NUMBER=$1
  shift
  exec ${JAVA} ${OPTS} ${JMX_ARGS} -XX:+IgnoreUnrecognizedVMOptions -Dzookeeper.4lw.commands.whitelist='*' org.apache.bookkeeper.util.LocalBookKeeper ${NUMBER} ${BOOKIE_CONF} $@
...
    信息
    此问题，我在bookkeeper官方仓库中提了个issue

  2. 2181端口绑定失败，这是因为单机版本的bk会自己创建并启动一个zk server，与文章开头我们自己创建的zk冲突了，停掉我们自己创建的zk即可。

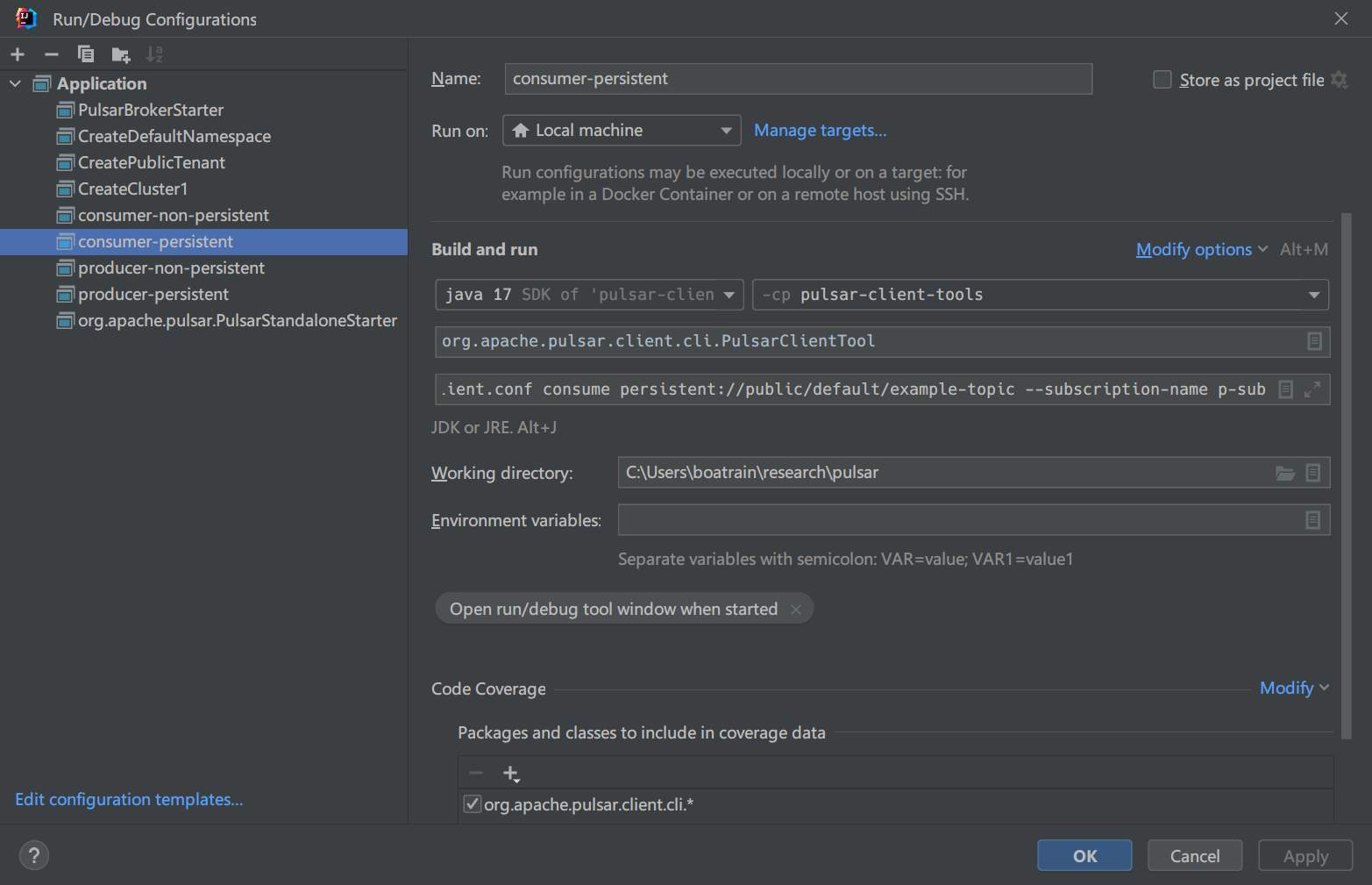

消费者消费持久化消息

../../file/pulsar_debug_in_ide/TxgAXs6.png

conf/client.conf consume persistent://public/default/example-topic --subscription-name p-sub

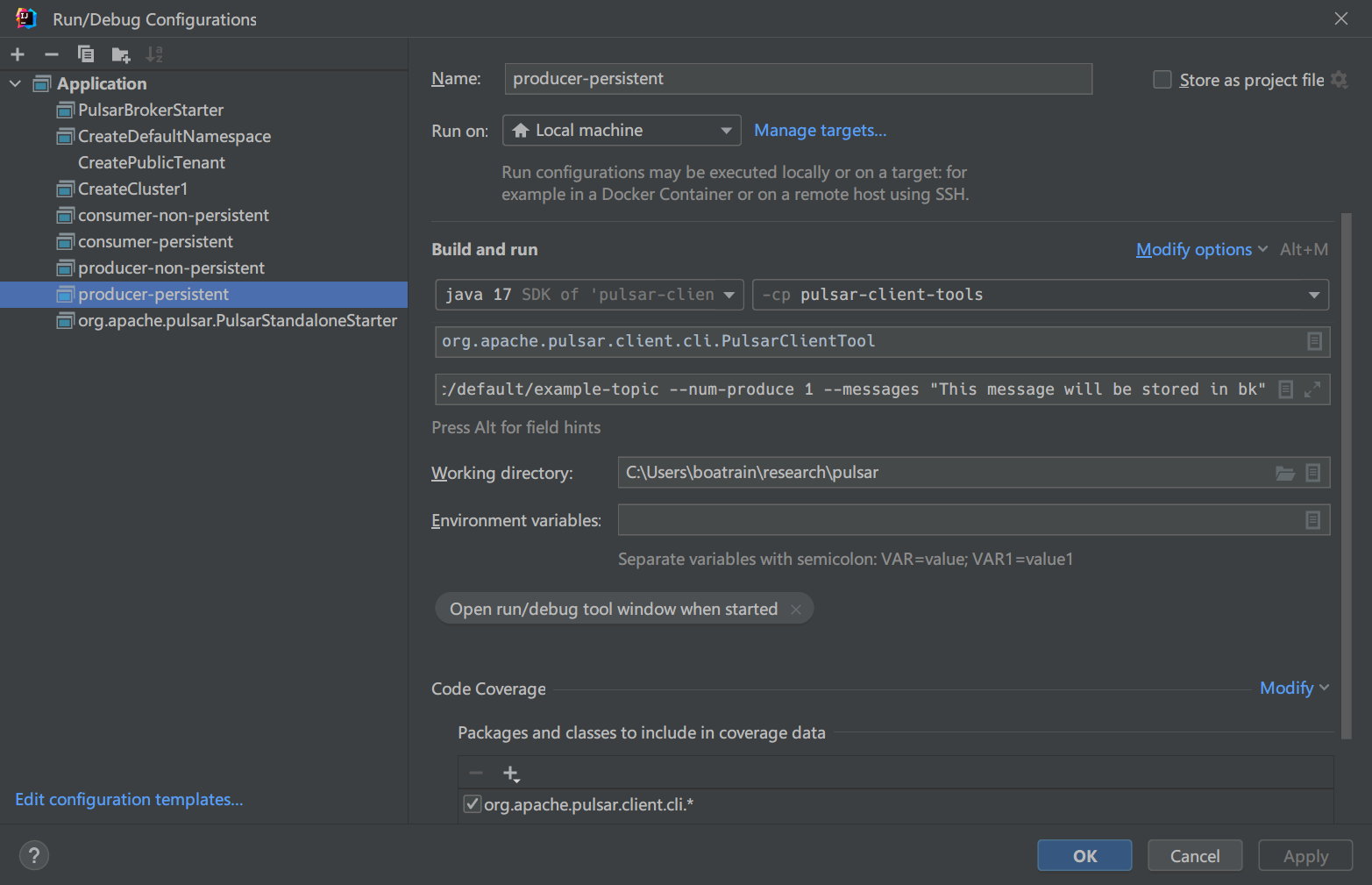

生产者生产持久化消息

../../file/pulsar_debug_in_ide/LkwvNWb.png

conf/client.conf produce persistent://public/default/example-topic --num-produce 1 --messages "This message will be stored in bk"

独立版的Pulsar

根据Pulsar官方文档的描述，独立版的Pulsar用来本地开发和测试：

引用
For local development and testing, you can run Pulsar in standalone mode on your machine. The standalone mode includes a Pulsar broker, the necessary RocksDB and BookKeeper components running inside of a single Java Virtual Machine (JVM) process.

独立版Pulsar的启动类是org.apache.pulsar.PulsarStandaloneStarter，这里踩了个坑：由于项目放在C盘，启动时创建RocksDB相关的文件时，会报权限不足的错：

2022-06-03T10:39:29,275 - ERROR - [io-write-scheduler-OrderedScheduler-0-0:RocksdbKVStore@195] - Failed to restore checkpoint: Checkpoint{ID='3014ae6e-5297-45aa-b688-2450d309691f', createdAt: 0 null}
org.apache.bookkeeper.statelib.api.exceptions.StateStoreException: Failed to create dir 000000000000000000/000000000000000000/000000000000000000
	at org.apache.bookkeeper.statelib.impl.rocksdb.checkpoint.CheckpointInfo$1.restore(CheckpointInfo.java:81) ~[statelib-4.15.0.jar:4.15.0]
	at org.apache.bookkeeper.statelib.impl.kv.RocksdbKVStore.loadRocksdbFromCheckpointStore(RocksdbKVStore.java:184) ~[statelib-4.15.0.jar:4.15.0]
	at org.apache.bookkeeper.statelib.impl.kv.RocksdbKVStore.init(RocksdbKVStore.java:286) ~[statelib-4.15.0.jar:4.15.0]
	at org.apache.bookkeeper.statelib.impl.journal.AbstractStateStoreWithJournal.lambda$initializeLocalStore$5(AbstractStateStoreWithJournal.java:216) ~[statelib-4.15.0.jar:4.15.0]
	at org.apache.bookkeeper.statelib.impl.journal.AbstractStateStoreWithJournal.lambda$executeIO$17(AbstractStateStoreWithJournal.java:526) ~[statelib-4.15.0.jar:4.15.0]
	at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:539) [?:?]
	at com.google.common.util.concurrent.TrustedListenableFutureTask$TrustedFutureInterruptibleTask.runInterruptibly(TrustedListenableFutureTask.java:131) [guava-31.0.1-jre.jar:?]
	at com.google.common.util.concurrent.InterruptibleTask.run(InterruptibleTask.java:74) [guava-31.0.1-jre.jar:?]
	at com.google.common.util.concurrent.TrustedListenableFutureTask.run(TrustedListenableFutureTask.java:82) [guava-31.0.1-jre.jar:?]
	at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:539) [?:?]
	at java.util.concurrent.FutureTask.run(FutureTask.java:264) [?:?]
	at java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.run(ScheduledThreadPoolExecutor.java:304) [?:?]
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1136) [?:?]
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:635) [?:?]
	at io.netty.util.concurrent.FastThreadLocalRunnable.run(FastThreadLocalRunnable.java:30) [netty-common-4.1.76.Final.jar:4.1.76.Final]
	at java.lang.Thread.run(Thread.java:833) [?:?]
Caused by: java.nio.file.FileSystemException: C:\Users\boatrain\research\pulsar\data\standalone\bookkeeper\ranges\data\ranges\000000000000000000\000000000000000000\000000000000000000\current: A required privilege is not held by the client
	at sun.nio.fs.WindowsException.translateToIOException(WindowsException.java:92) ~[?:?]
	at sun.nio.fs.WindowsException.rethrowAsIOException(WindowsException.java:103) ~[?:?]
	at sun.nio.fs.WindowsException.rethrowAsIOException(WindowsException.java:108) ~[?:?]
	at sun.nio.fs.WindowsFileSystemProvider.createSymbolicLink(WindowsFileSystemProvider.java:598) ~[?:?]
	at java.nio.file.Files.createSymbolicLink(Files.java:1069) ~[?:?]
	at org.apache.bookkeeper.statelib.impl.rocksdb.checkpoint.CheckpointInfo.updateCurrent(CheckpointInfo.java:126) ~[statelib-4.15.0.jar:4.15.0]
	at org.apache.bookkeeper.statelib.impl.rocksdb.checkpoint.CheckpointInfo$1.restore(CheckpointInfo.java:79) ~[statelib-4.15.0.jar:4.15.0]
	... 15 more

解决方法就是以管理员启动IDEA，然后再启动org.apache.pulsar.PulsarStandaloneStarter：

https://raw.githubusercontent.com/boatrainlsz/my-image-hosting/main/image-20220603103604574.png

https://raw.githubusercontent.com/boatrainlsz/my-image-hosting/main/image-20220603103534391.png

更新于 2022-05-27
